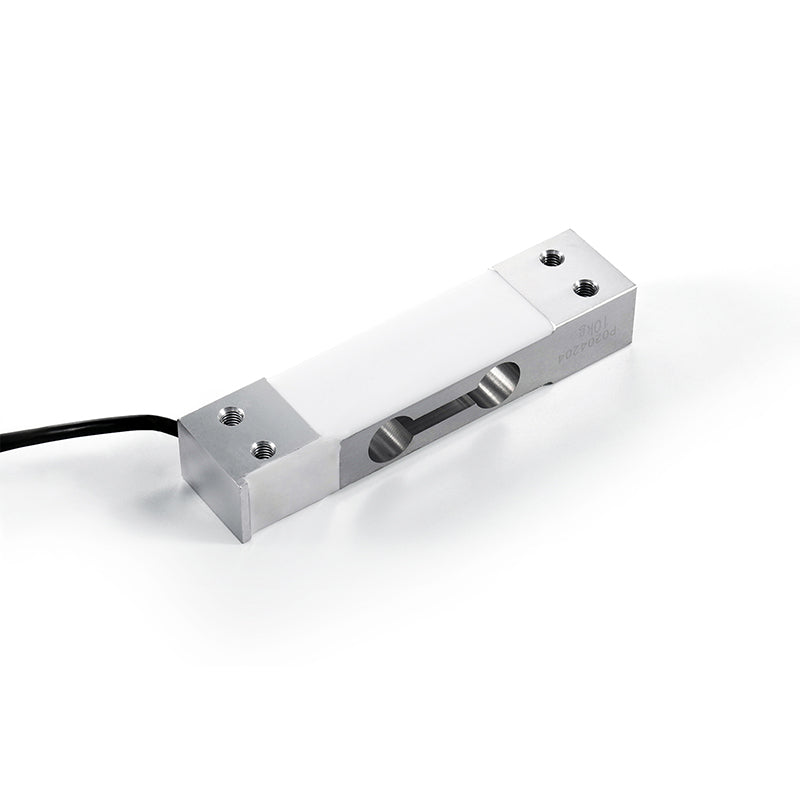

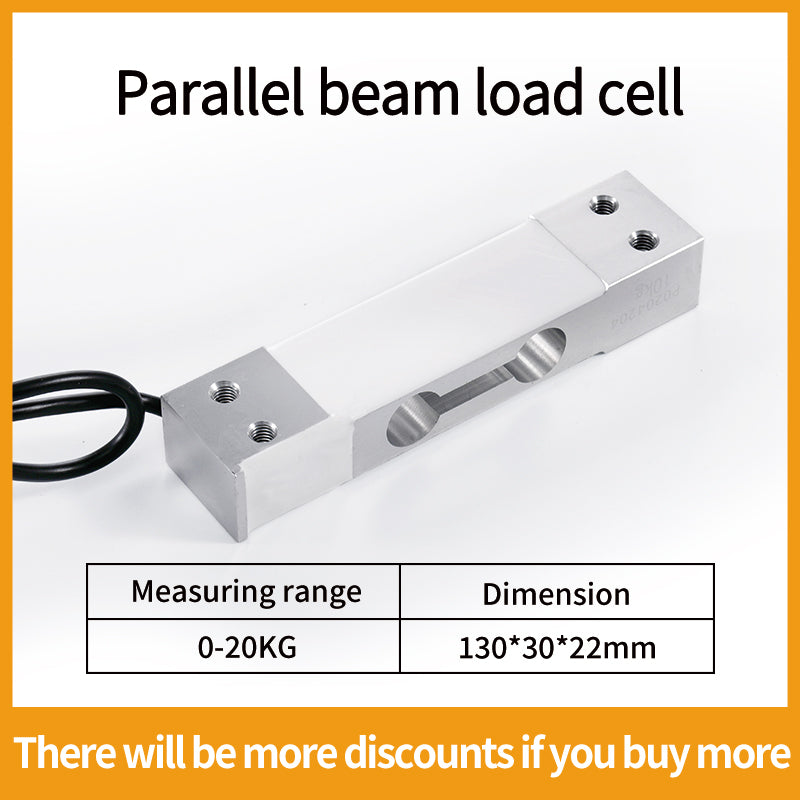

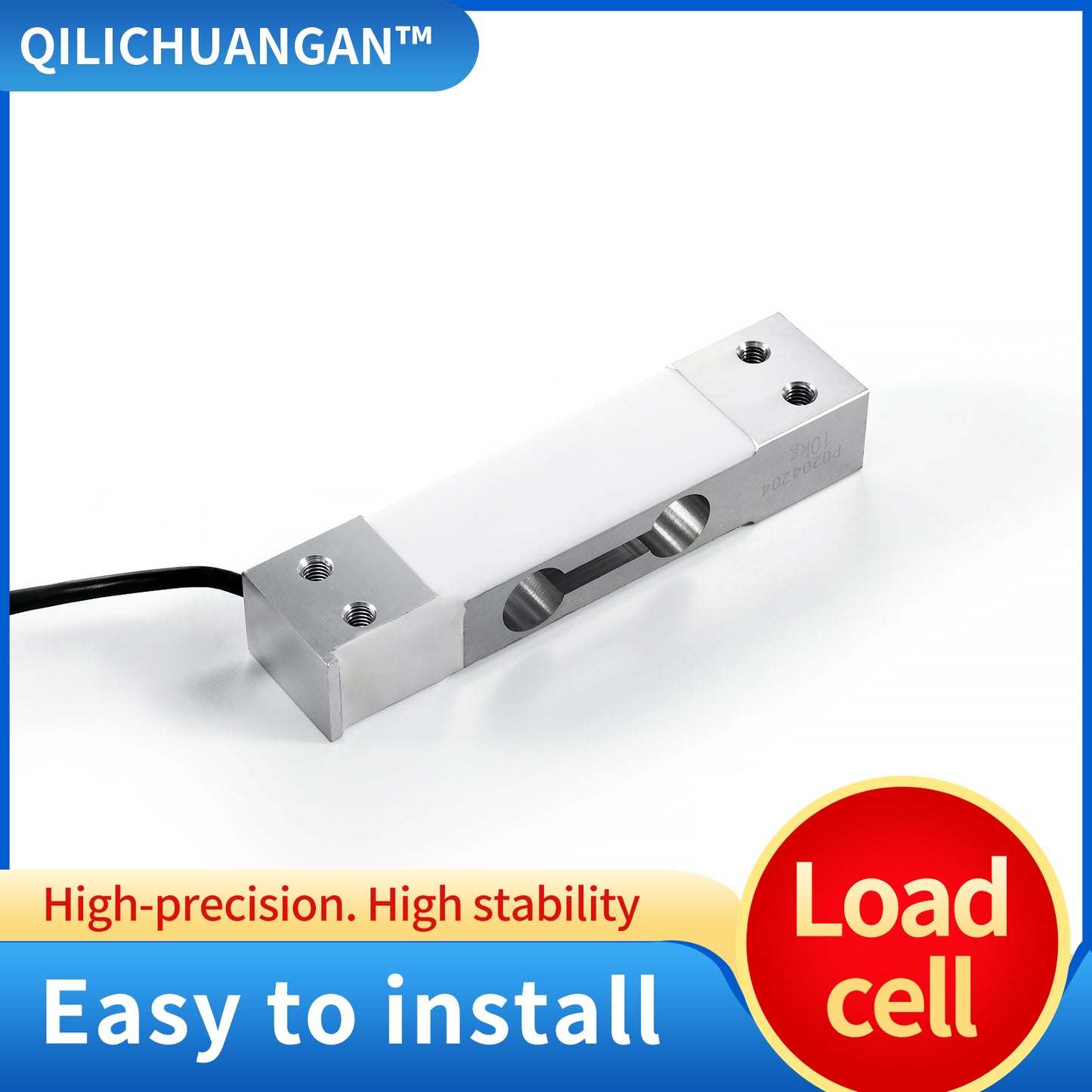

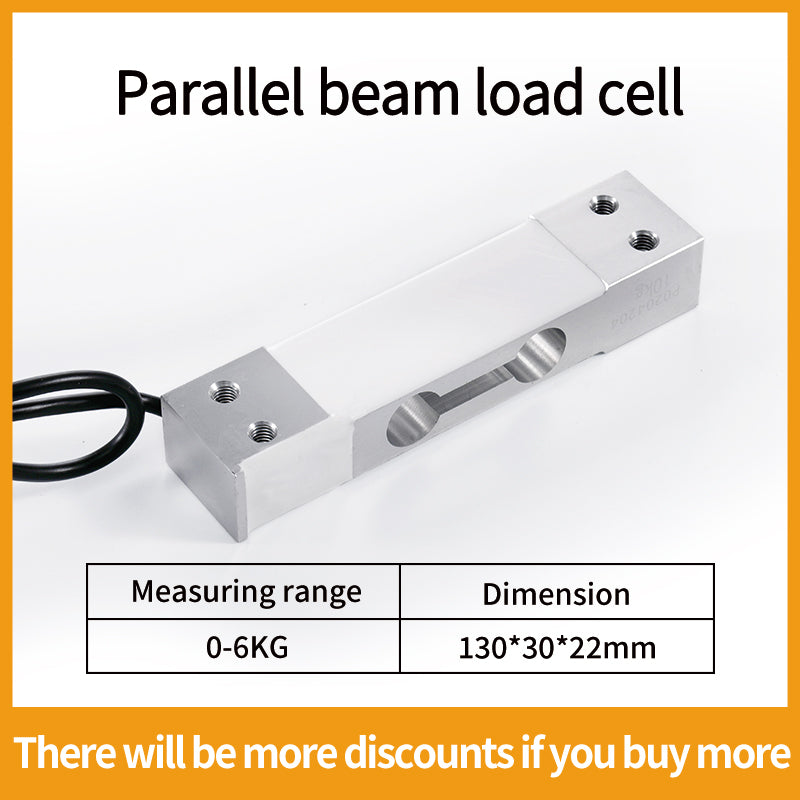

Beam Type Load Cell Scale Sensor Range 6-80KG 130mm30mm22mm - A6L1

$18.90

~~$100.00~~ $18.90

Sale Sold out

Taxes included.

Range 6KG 10KG 20KG 40KG 80KG

Quantity

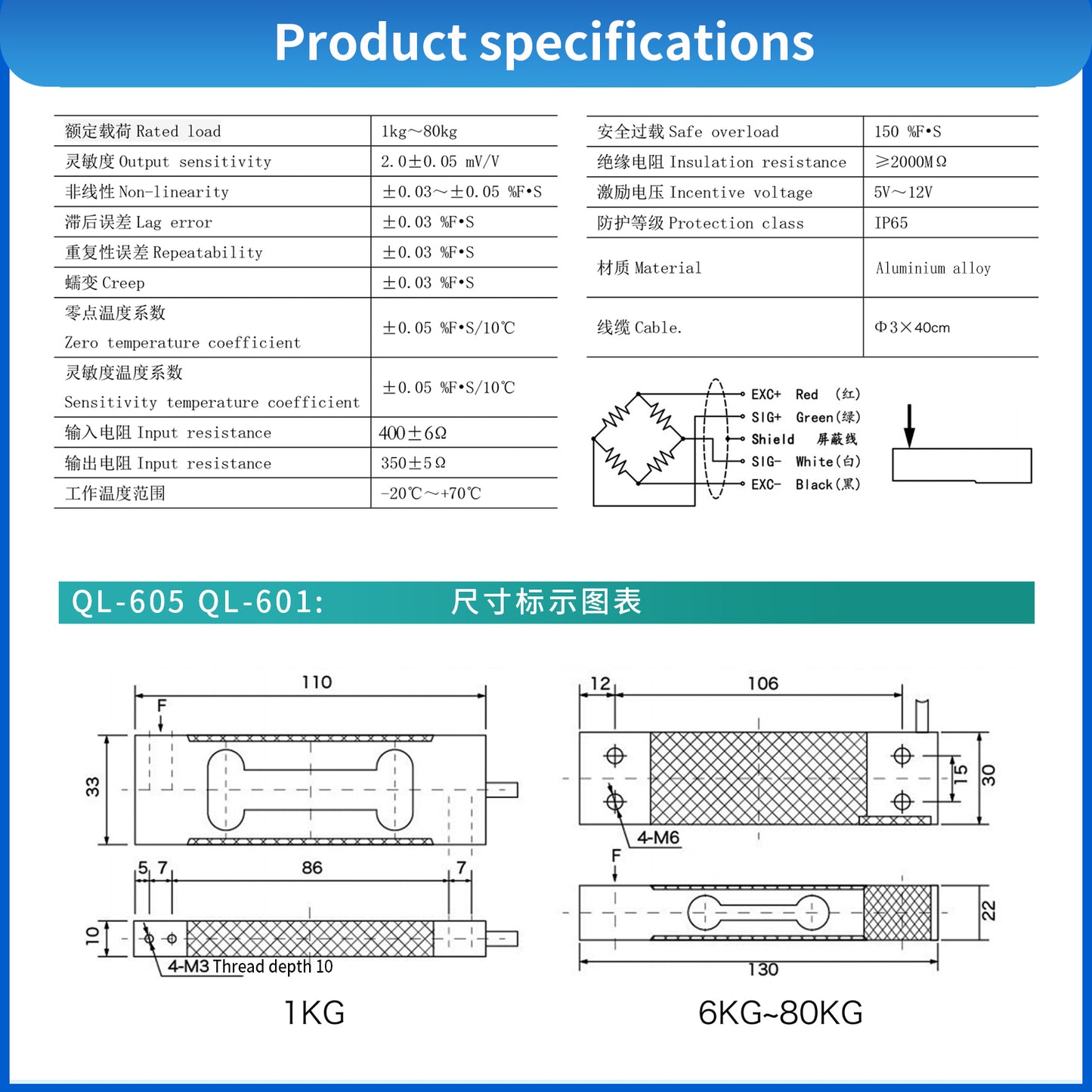

Output sensitivity：2.0±0.2 mV/V

Non-linearity：±0.03~±0.05 %F·S

Lag error：±0.03 %F·S

Repeatability：±0.03 %F·S

Creep：±0.03 %F·S

Zero temperature coefficient：±0.05 %F·S/10℃

Sensitivity temperature coefficient：±0.05 %F·S/10℃

Input resistance：400±6Ω

Safe overload：150 %F·S

Insulation resistance：≥2000M Ω

Incentive voltage：9V～12V

Protection class：IP65

Material：Aluminium alloy

Cable：φ3×140cm

Operating temperature：-20℃~+70℃

Product details
